Commercial Duty · EN 1433

Pro G Series
Talk to a specialist

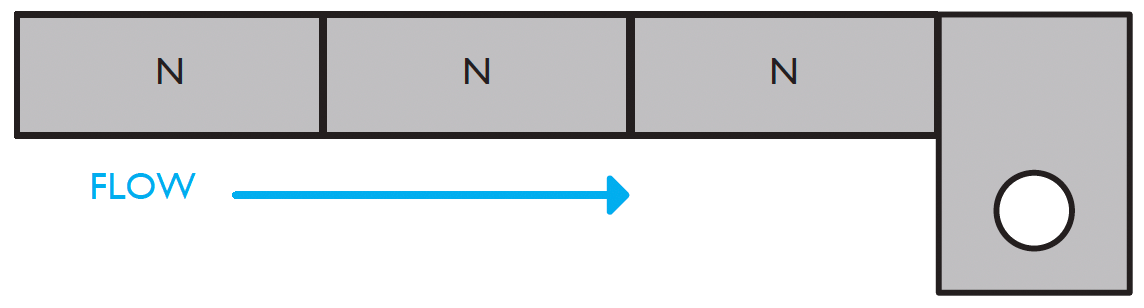

Without slope (0%)

Standard / flat bottom

Flexible drain placement

Identification

Element height code

no. 0 – 5

Element length

1 m (39.4")

Nominal width

NW 100 (4")

Dimensions (element no. 0)

Overall width

162 mm (6.4")

Interior width

100 mm (3.9")

Installation height

120 mm (4.7")

Weight

~9.5 kg (~20.9 lb)

Hydraulics

Internal slope

0%

Flow direction

Toward outlet point

Outlet

Vertical, pre-formed

Key feature

Outlet position

Any element in run

Slope by terrain

Required externally

Run length flexibility

High

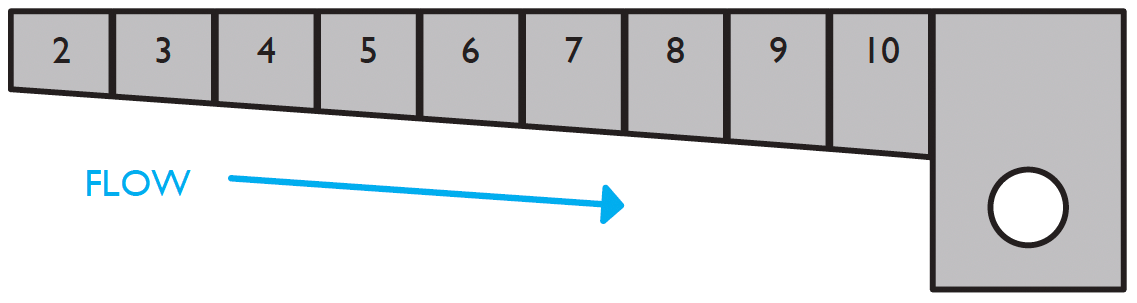

0.5% internal slope

Built-in fall

Cascading step system

Identification

Element height code

no. 0 → 1 → 2 → … → 20

Element length

500 mm (19.7")

Nominal width

NW 100 (4")

Dimensions (element no. 0)

Overall width

162 mm (6.4")

Interior width

100 mm (3.9")

Installation height

120 → 145 mm (4.7"→5.7")

Weight

~9.5 kg (~20.9 lb)

Hydraulics

Internal slope

0.5%

Flow direction

Built-in toward outlet

Outlet

End of sloped run

Key feature

Step height per element

2.5 mm / 500 mm

Slope by terrain

Not required

Self-cleaning effect

Enhanced

Channel body

Width (in) Image Product Name No Size Weight Load class Edge type
6" BG-FILCOTEN pro G NW 150 Nr. 0, with cast iron edge, without slope | 10615100 BG-FILCOTEN pro G NW 150 Nr. 0, with cast iron edge, without slope | 10615100 10615100

length:

height:

width:

32.5 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 5-0, with cast iron edge, without slope | 10615161 BG-FILCOTEN pro G NW 150 Nr. 5-0, with cast iron edge, without slope | 10615161 10615161

length:

height:

width:

35.6 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 10-0, with cast iron edge, without slope | 10615162 BG-FILCOTEN pro G NW 150 Nr. 10-0, with cast iron edge, without slope | 10615162 10615162

length:

height:

width:

40.0 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 20-0, with cast iron edge, without slope | 10615164 BG-FILCOTEN pro G NW 150 Nr. 20-0, with cast iron edge, without slope | 10615164 10615164

length:

height:

width:

50.5 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 1, cast iron edge, with cast iron edge, 0,5% slope | 10615101 BG-FILCOTEN pro G NW 150 Nr. 1, cast iron edge, with cast iron edge, 0,5% slope | 10615101 10615101

length:

height:

width:

32.5 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 2, with cast iron edge, 0,5% slope | 10615102 BG-FILCOTEN pro G NW 150 Nr. 2, with cast iron edge, 0,5% slope | 10615102 10615102

length:

height:

width:

33.2 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 3, with cast iron edge, 0,5% slope | 10615103 BG-FILCOTEN pro G NW 150 Nr. 3, with cast iron edge, 0,5% slope | 10615103 10615103

length:

height:

width:

33.9 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 4, with cast iron edge, 0,5% slope | 10615104 BG-FILCOTEN pro G NW 150 Nr. 4, with cast iron edge, 0,5% slope | 10615104 10615104

length:

height:

width:

34.6 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 5, with cast iron edge, 0,5% slope | 10615105 BG-FILCOTEN pro G NW 150 Nr. 5, with cast iron edge, 0,5% slope | 10615105 10615105

length:

height:

width:

35.3 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 6, with cast iron edge, 0,5% slope | 10615106 BG-FILCOTEN pro G NW 150 Nr. 6, with cast iron edge, 0,5% slope | 10615106 10615106

length:

height:

width:

35.9 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 7, with cast iron edge, 0,5% slope | 10615107 BG-FILCOTEN pro G NW 150 Nr. 7, with cast iron edge, 0,5% slope | 10615107 10615107

length:

height:

width:

36.6 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 8, with cast iron edge, 0,5% slope | 10615108 BG-FILCOTEN pro G NW 150 Nr. 8, with cast iron edge, 0,5% slope | 10615108 10615108

length:

height:

width:

37.2 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 9, with cast iron edge, 0,5% slope | 10615109 BG-FILCOTEN pro G NW 150 Nr. 9, with cast iron edge, 0,5% slope | 10615109 10615109

length:

height:

width:

37.9 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 10, with cast iron edge, 0,5% slope | 10615110 BG-FILCOTEN pro G NW 150 Nr. 10, with cast iron edge, 0,5% slope | 10615110 10615110

length:

height:

width:

38.5 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 11, with cast iron edge, 0,5% slope | 10615111 BG-FILCOTEN pro G NW 150 Nr. 11, with cast iron edge, 0,5% slope | 10615111 10615111

length:

height:

width:

0.0 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 12, with cast iron edge, 0,5% slope | 10615112 BG-FILCOTEN pro G NW 150 Nr. 12, with cast iron edge, 0,5% slope | 10615112 10615112

length:

height:

width:

0.0 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 13, with cast iron edge, 0,5% slope | 10615113 BG-FILCOTEN pro G NW 150 Nr. 13, with cast iron edge, 0,5% slope | 10615113 10615113

length:

height:

width:

0.0 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 14, with cast iron edge, 0,5% slope | 10615114 BG-FILCOTEN pro G NW 150 Nr. 14, with cast iron edge, 0,5% slope | 10615114 10615114

length:

height:

width:

0.0 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 15, with cast iron edge, 0,5% slope | 10615115 BG-FILCOTEN pro G NW 150 Nr. 15, with cast iron edge, 0,5% slope | 10615115 10615115

length:

height:

width:

0.0 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 16, with cast iron edge, 0,5% slope | 10615116 BG-FILCOTEN pro G NW 150 Nr. 16, with cast iron edge, 0,5% slope | 10615116 10615116

length:

height:

width:

0.0 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 17, with cast iron edge, 0,5% slope | 10615117 BG-FILCOTEN pro G NW 150 Nr. 17, with cast iron edge, 0,5% slope | 10615117 10615117

length:

height:

width:

38.5 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 18, with cast iron edge, 0,5% slope | 10615118 BG-FILCOTEN pro G NW 150 Nr. 18, with cast iron edge, 0,5% slope | 10615118 10615118

length:

height:

width:

38.5 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 19, with cast iron edge, 0,5% slope | 10615119 BG-FILCOTEN pro G NW 150 Nr. 19, with cast iron edge, 0,5% slope | 10615119 10615119

length:

height:

width:

38.5 kg F900
6" BG-FILCOTEN pro G NW 150 Nr. 20, with cast iron edge, 0,5% slope | 10615120 BG-FILCOTEN pro G NW 150 Nr. 20, with cast iron edge, 0,5% slope | 10615120 10615120

length:

height:

width:

38.5 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 0, with cast iron edge, without slope | 10620100 BG-FILCOTEN pro G NW 200 Nr. 0, with cast iron edge, without slope | 10620100 10620100

length:

height:

width:

45.0 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 5-0, with cast iron edge, without slope | 10620161 BG-FILCOTEN pro G NW 200 Nr. 5-0, with cast iron edge, without slope | 10620161 10620161

length:

height:

width:

50.3 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 10-0, with cast iron edge, without slope | 10620162 BG-FILCOTEN pro G NW 200 Nr. 10-0, with cast iron edge, without slope | 10620162 10620162

length:

height:

width:

55.3 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 20-0, with cast iron edge, without slope | 10620164 BG-FILCOTEN pro G NW 200 Nr. 20-0, with cast iron edge, without slope | 10620164 10620164

length:

height:

width:

65.6 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 1, with cast iron edge, 0,5% slope | 10620101 BG-FILCOTEN pro G NW 200 Nr. 1, with cast iron edge, 0,5% slope | 10620101 10620101

length:

height:

width:

45.5 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 2, with cast iron edge, 0,5% slope | 10620102 BG-FILCOTEN pro G NW 200 Nr. 2, with cast iron edge, 0,5% slope | 10620102 10620102

length:

height:

width:

46.5 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 3, with cast iron edge, 0,5% slope | 10620103 BG-FILCOTEN pro G NW 200 Nr. 3, with cast iron edge, 0,5% slope | 10620103 10620103

length:

height:

width:

47.5 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 4, with cast iron edge, 0,5% slope | 10620104 BG-FILCOTEN pro G NW 200 Nr. 4, with cast iron edge, 0,5% slope | 10620104 10620104

length:

height:

width:

48.6 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 5, with cast iron edge, 0,5% slope | 10620105 BG-FILCOTEN pro G NW 200 Nr. 5, with cast iron edge, 0,5% slope | 10620105 10620105

length:

height:

width:

49.6 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 6, with cast iron edge, 0,5% slope | 10620106 BG-FILCOTEN pro G NW 200 Nr. 6, with cast iron edge, 0,5% slope | 10620106 10620106

length:

height:

width:

50.7 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 7, with cast iron edge, 0,5% slope | 10620107 BG-FILCOTEN pro G NW 200 Nr. 7, with cast iron edge, 0,5% slope | 10620107 10620107

length:

height:

width:

51.7 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 8, with cast iron edge, 0,5% slope | 10620108 BG-FILCOTEN pro G NW 200 Nr. 8, with cast iron edge, 0,5% slope | 10620108 10620108

length:

height:

width:

52.8 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 10, with cast iron edge, 0,5% slope | 10620110 BG-FILCOTEN pro G NW 200 Nr. 10, with cast iron edge, 0,5% slope | 10620110 10620110

length:

height:

width:

54.9 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 11, with cast iron edge, 0,5% slope | 10620111 BG-FILCOTEN pro G NW 200 Nr. 11, with cast iron edge, 0,5% slope | 10620111 10620111

length:

height:

width:

55.5 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 12, with cast iron edge, 0,5% slope | 10620112 BG-FILCOTEN pro G NW 200 Nr. 12, with cast iron edge, 0,5% slope | 10620112 10620112

length:

height:

width:

57.0 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 13, with cast iron edge, 0,5% slope | 10620113 BG-FILCOTEN pro G NW 200 Nr. 13, with cast iron edge, 0,5% slope | 10620113 10620113

length:

height:

width:

58.1 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 14, with cast iron edge, 0,5% slope | 10620114 BG-FILCOTEN pro G NW 200 Nr. 14, with cast iron edge, 0,5% slope | 10620114 10620114

length:

height:

width:

59.7 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 15, with cast iron edge, 0,5% slope | 10620115 BG-FILCOTEN pro G NW 200 Nr. 15, with cast iron edge, 0,5% slope | 10620115 10620115

length:

height:

width:

61.6 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 16, with cast iron edge, 0,5% slope | 10620116 BG-FILCOTEN pro G NW 200 Nr. 16, with cast iron edge, 0,5% slope | 10620116 10620116

length:

height:

width:

62.5 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 17, with cast iron edge, 0,5% slope | 10620117 BG-FILCOTEN pro G NW 200 Nr. 17, with cast iron edge, 0,5% slope | 10620117 10620117

length:

height:

width:

63.4 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 18, with cast iron edge, 0,5% slope | 10620118 BG-FILCOTEN pro G NW 200 Nr. 18, with cast iron edge, 0,5% slope | 10620118 10620118

length:

height:

width:

64.1 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 19, with cast iron edge, 0,5% slope | 10620119 BG-FILCOTEN pro G NW 200 Nr. 19, with cast iron edge, 0,5% slope | 10620119 10620119

length:

height:

width:

64.7 kg F900
8" BG-FILCOTEN pro G NW 200 Nr. 20, with cast iron edge, 0,5% slope | 10620120 BG-FILCOTEN pro G NW 200 Nr. 20, with cast iron edge, 0,5% slope | 10620120 10620120

length:

height:

width:

65.9 kg F900
12" BG-FILCOTEN pro G NW 300 Nr. 0, with cast iron edge, without slope | 10630100 BG-FILCOTEN pro G NW 300 Nr. 0, with cast iron edge, without slope | 10630100 10630100

length:

height:

width:

81.0 kg F900
12" BG-FILCOTEN pro G NW 300 Nr. 5-0, with cast iron edge, without slope | 10630161 BG-FILCOTEN pro G NW 300 Nr. 5-0, with cast iron edge, without slope | 10630161 10630161

length:

height:

width:

86.5 kg F900
12" BG-FILCOTEN pro G NW 300 Nr. 10-0, with cast iron edge, without slope | 10630162 BG-FILCOTEN pro G NW 300 Nr. 10-0, with cast iron edge, without slope | 10630162 10630162

length:

height:

width:

92.5 kg F900

gratings

Image Product Name Load class Features Inlet cross-section (cm²/m) Weight Item no.
ductile iron slotted grating NW 300, 500/347/25, SW 16/140, cl. F900 (pro) 4 pt. bolting-device | 17030107 ductile iron slotted grating NW 300, 500/347/25, SW 16/140, cl. F900 (pro) 4 pt. bolting-device | 17030107 F900 0.0 kg 17030107
ductile iron bar grating NW 300, 500/347/25, MW 29/13, cl. E600 (pro) 4 pt. bolting-device | 17030103 ductile iron bar grating NW 300, 500/347/25, MW 29/13, cl. E600 (pro) 4 pt. bolting-device | 17030103 E600 0.0 kg 17030103
ductile iron bar grating NW 200, 500/222/20, MW 22/13, cl. E600 (pro) 4-times bolted | 17020103 ductile iron bar grating NW 200, 500/222/20, MW 22/13, cl. E600 (pro) 4-times bolted | 17020103 E600 0.0 kg 17020103
ductile iron slotted grating NW 200, 500/222/20, SW 14/95, cl. F900 (pro) | 17020107 ductile iron slotted grating NW 200, 500/222/20, SW 14/95, cl. F900 (pro) | 17020107 F900 0.0 kg 17020107
ductile iron bar grating NW 150, 500/172/20, MW 22/13, cl. E600 (pro) 4-times bolted | 17015103 ductile iron bar grating NW 150, 500/172/20, MW 22/13, cl. E600 (pro) 4-times bolted | 17015103 E600 0.0 kg 17015103
ductile iron slotted grating NW 150, 500/172/20, SW 14/150, cl. F900 (pro) | 17015107 ductile iron slotted grating NW 150, 500/172/20, SW 14/150, cl. F900 (pro) | 17015107 F900 0.0 kg 17015107

accessories

Image Product Name Item no Features Weight
no hub bottom outlet plate NW 200, with vertical outlet, 8", galvanized (pro V) | 19021208 no hub bottom outlet plate NW 200, with vertical outlet, 8", galvanized (pro V) | 19021208 19021208 0.0 kg
step displace plate NW 300, Nr. 0-20/0, galvanized (pro) | 19030295 step displace plate NW 300, Nr. 0-20/0, galvanized (pro) | 19030295 19030295 0.0 kg
locking device kit complete BG-FILCOTEN pro - ductile iron grating M10 V (NW300, 400) | 32110 locking device kit complete BG-FILCOTEN pro - ductile iron grating M10 V (NW300, 400) | 32110 32110 0.0 kg
locking device kit complete BG-FILCOTEN pro - mesh grating, M10 V (NW300) | 32112 locking device kit complete BG-FILCOTEN pro - mesh grating, M10 V (NW300) | 32112 32112 0.0 kg
end cap NW 300, with outlet DN200, galvanized (pro No. 0-20) | 19030214 end cap NW 300, with outlet DN200, galvanized (pro No. 0-20) | 19030214 19030214 0.0 kg
front/end cap NW 300, closed, galvanized (pro No. 0-20) | 19030213 front/end cap NW 300, closed, galvanized (pro No. 0-20) | 19030213 19030213 0.0 kg
FICLOTEN pro KIT NW 300 G, sump unit with cast iron edge, silt bucket, 2-parts, pipe coupl. DN200 | 10630192 FICLOTEN pro KIT NW 300 G, sump unit with cast iron edge, silt bucket, 2-parts, pipe coupl. DN200 | 10630192 10630192 0.0 kg
Installation chair kit NW150/200, BG-FILCOTEN light/tec/pro NW150/200, galvanized | 19020902 Installation chair kit NW150/200, BG-FILCOTEN light/tec/pro NW150/200, galvanized | 19020902 19020902 0.0 kg
step displace plate NW 150, Nr. 0-20/0, galvanized (pro) | 19015295 step displace plate NW 150, Nr. 0-20/0, galvanized (pro) | 19015295 19015295 0.0 kg
anti-vandalism locking device NW 150 (BG-FILCOTEN tec, pro) | 32088 anti-vandalism locking device NW 150 (BG-FILCOTEN tec, pro) | 32088 32088 0.0 kg
no hub bottom outlet plate NW 150, with outlet, 6", galvanized (pro V) | 19016206 no hub bottom outlet plate NW 150, with outlet, 6", galvanized (pro V) | 19016206 19016206 0.0 kg
locking device kit complete BG-FILCOTEN pro G - M8, V (NW100-200) | 32103 locking device kit complete BG-FILCOTEN pro G - M8, V (NW100-200) | 32103 32103 0.0 kg
end cap NW 150, with outlet DN150, galvanized (pro No. 15-0, 20-0) | 19015216 end cap NW 150, with outlet DN150, galvanized (pro No. 15-0, 20-0) | 19015216 19015216 0.0 kg
front/end cap NW 150, closed, galvanized (pro No. 15-0, 20-0) | 19015215 front/end cap NW 150, closed, galvanized (pro No. 15-0, 20-0) | 19015215 19015215 0.0 kg
BG-FILCOTEN pro KIT NW 150 G, sump unit with cast iron edge, silt bucket, pipe coupl. DN 150 | 10615192 BG-FILCOTEN pro KIT NW 150 G, sump unit with cast iron edge, silt bucket, pipe coupl. DN 150 | 10615192 10615192 0.0 kg
