Commercial Duty · EN 1433

BG-FILCOTEN®

Pro P Series

High-performance concrete trench drain with integral 2 mm galvanized steel rail. Up to load class E. Engineered from BG-FILCOTEN® HPC - 70% lighter than conventional concrete, 100% recyclable, and non-toxic from day one.

Browse Channel Systems Talk to a specialist

Product Line

PRO P

Commercial Duty

Rail Material

COMPOSITE

2 mm galvanized steel

Channel Width

100mm

4" / NW 100

Load Class

≤ E600

Per EN 1433

Standard

EN1433

+ ASTM A112.6.8

Body Material

HPC

High Performance Concrete

Weight vs. Concrete

−70%

Lighter than conventional

TEC

DOWNLOADS

Documentation & drawings

Spec sheets, material data, and CAD files for the FILCOTEN HPC system.

pro P NW 100 - spec sheet. trench_drain PDF pro P NW 100 — spec sheet.accessories PDF BG_FILCOTEN Installation Manual PDF RCI Trench Drains Product Selection Guide 2025 PDF

pro P NW 100 — trench_drain DWG pro P NW 1000 — accessories DWG

concrete trench drains

Like standard concrete, simply better.

BG-FILCOTEN® HPC (High Performance Concrete) is a 100% mineral material — an enhanced form of conventional concrete engineered without styrenes, synthetic fibres, or polymers. Its optimised high-density structure makes it possible to build drainage channels that are lighter, stronger, and cleaner than anything conventional concrete or polymer concrete can offer.

The result is a channel body that bonds with the surrounding concrete bed as a single continuous unit, reacts to temperature changes identically, and carries no harmful substances from installation through to end-of-life recycling.

Weight Reduction

−70%

vs. conventional concrete channels

Inner Surface

36 µm

Smoothest surface in class - optimal flow & self-cleaning

Fire Classification

A1

Non-combustible - no toxic fume emission

Recyclability

100%

Certified recyclable - zero artificial resins or solvents

Frost Resistance

−40°C

+ resistant to de-icing salts and UV

Harmful Substances

0%

No heavy metals, VOCs, biocides, or radioactivity

BG-FILCOTEN
pro P
Load class
D 400
NW 100 mm (4")

Variants: without slope, outlet without slope

CO2-eq: 2.6 , 3.3 , 7.1 Kg/piece

Edge -

Material: FILCOTEN HPC

Length: 1,000mm (39.4")

Width: 130 mm (5.2")

Height at channel end: 135 - 245 mm (5.4 - 9.7")

See catalog

Application areas: Platform, Facade, Airport (landside), Pedestrian zones, Landscape construction, Garage driveway Garden and landscape construction, Driveway Parking deck, Parking (car), Residential garage, Multi-storey car park, Pavers, Cycling routes, Slot top, Slot channel, Swimming pool, Sports facility, Terrace, Underground car park, Unobtrusive drainage, Garage, Design, Discreet drainage

How to order

Three parts. One system.

Every trench drain assembly combines a channel body, a grating and a set of accessories. Here's how the pieces come together.

Channel body

+

Grating

+

Accessories

=

Complete system

01

Channel body

The structural run that carries and directs water flow. Profile and material set the depth, strength and install method.

tec V

pro V

pro G

02

Grating

The surface cover that sits flush with grade. Style and material set the load class, safety rating and finish.

Mesh

Slotted

Ductile iron

03

Accessories

End caps, outlets and fittings that finish the run and connect it to your drainage line.

End caps

Outlets

Silt buckets

Not sure which combination is right?

Send us your flow rate, load class and run length - our specialists will help you select the optimal channel, grating and accessory combination for your project.

Contact us for help

Part of the assembly

The grating isn't an accessory - it's engineered into the channel.

Every BG-FILCOTEN® channel body is designed around a matched grating: the rail profile, lock recess, and surround concrete depth are all sized to the grating's material and load class. Drop the wrong grate on the wrong channel and you lose the rating.

Rail geometry matched to grating thickness and lock type
fiX lock recess cast directly into the channel rail
Concrete surround ("X" dimension) scales with load class and rail material
One channel body, multiple grating options across the load range

Materials & types

ways to cover a channel.

Function first, form follows - every BG-FILCOTEN® grating trades off load capacity, corrosion resistance, and appearance differently. Pick the material, then the load class.

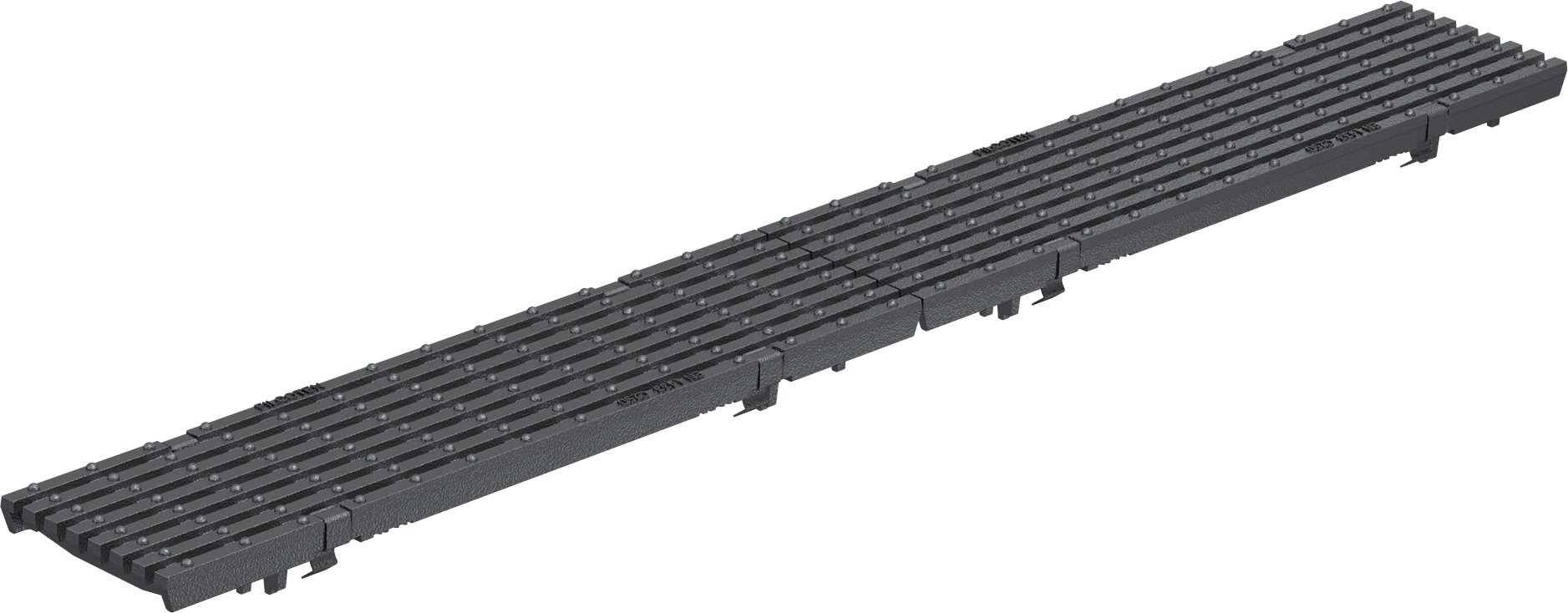

Ductile iron elongated bar grating

SKU: 17010106

L: 19.7 " x B: 4.8 " x H: 0.8 "
Mesh width: 29/6 (1.15"/0.24") | Heelproof, ADA compliant
Material: ductile iron

C 250

fiX-locking

for 4" body

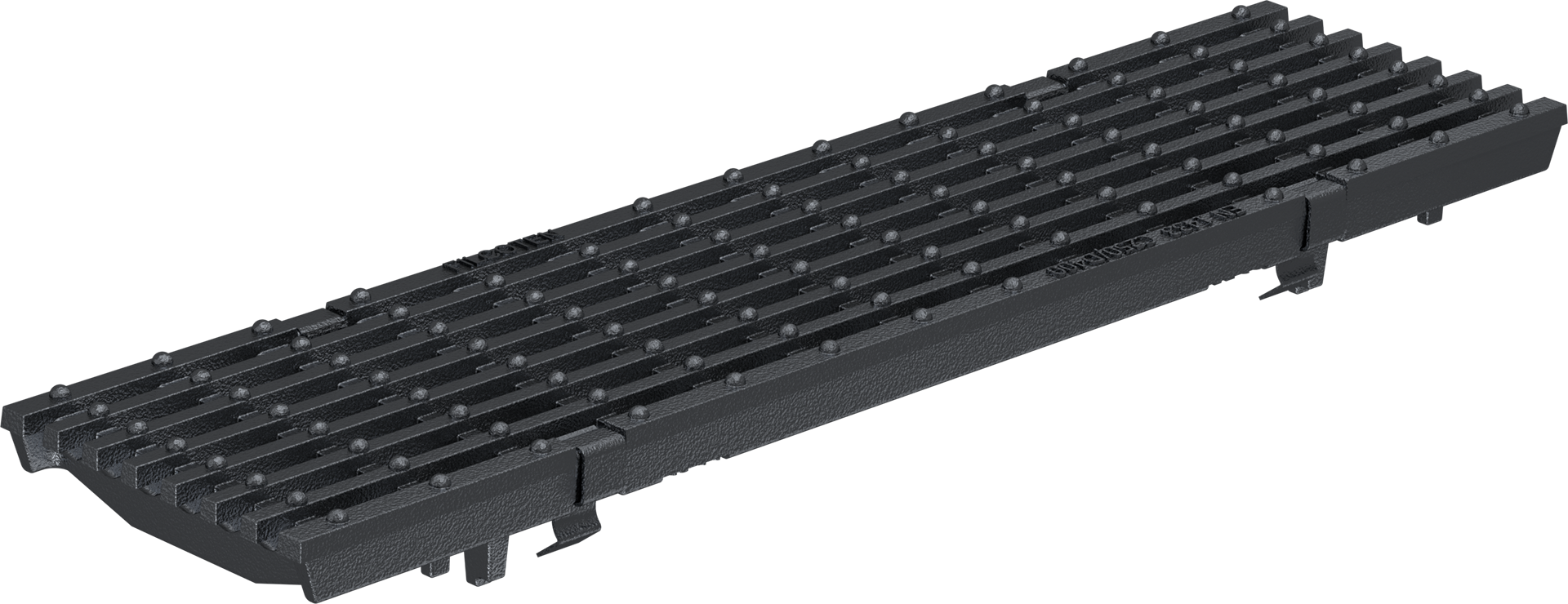

Ductile iron elongated bar grating

SKU: 17010110

L: 19.7 " x B: 4.8 " x H: 0.8 "
Slot width: 14/100 (0.56"/3.94")
Material: ductile iron

D 400

fiX-locking

for 4" body

Engineering

Built for the long run.

Every detail of the tec V is engineered to outperform - from the snap-on grating system to the textured exterior that bonds permanently with surrounding concrete.

fiX Snap-On Anchoring

The integral four-point quick-release, spring-loaded fiX system holds gratings firmly in place while allowing tool-free removal for maintenance. Two anti-sliding lugs prevent any longitudinal shift.

Superior Self-Cleaning

The ultra-smooth flat inner surface (36 µm roughness) minimizes friction and achieves best-in-class flow characteristics - outperforming polymer concrete at 36 µm+ and conventional concrete by a wide margin.

Permanent Bond to Substrate

Computer-designed anchoring ribs increase exterior surface area dramatically, giving far better adhesion to the surrounding concrete bed. The identical linear expansion coefficient ensures a permanent fit with no seasonal movement stress.

High Compressive Strength

Patented fiber-enriched HPC formula delivers exceptional compressive strength in thin-walled construction - no synthetic resins required. FILCOTEN® outperforms polymer concrete and glass fiber modified concrete on all key metrics.

Galvanized Steel Rail

Integral 2 mm galvanized steel rail on the tec V provides secure grating lock-in with adjacent surface attachment points. Engineered fixing lugs distribute load evenly across the FILCOTEN® channel body.

Temperature & UV Resistant

Cement-bonded fiber composite reacts to temperature change identically to the surrounding concrete bed, creating a unified, stress-free system. Resistant to frost down to −40°C/−40°F, de-icing salts, and UV radiation throughout its service life.
