High-Performance Concrete

BG-FILCOTEN®
HPC

Strong like concrete,
gentle to the environment.

Browse Channel Systems Talk to a specialist
EN 1433/ ASTM A1 12.6.8.2001

Certified to Class F
4" 6" 8" & 12″

Pre-sloped/ neutral channel widths in stock
Load Class

A - F

TRUSTED BY

Contractors

Engineers

Architects

Municipalities

Product Collection

Choose Your Trench Drain

Every BG-FILCOTEN® channel shares the same eco-certified BG-FILCOTEN® HPC body. The edge rail material determines the load class, aesthetics, and application fit.

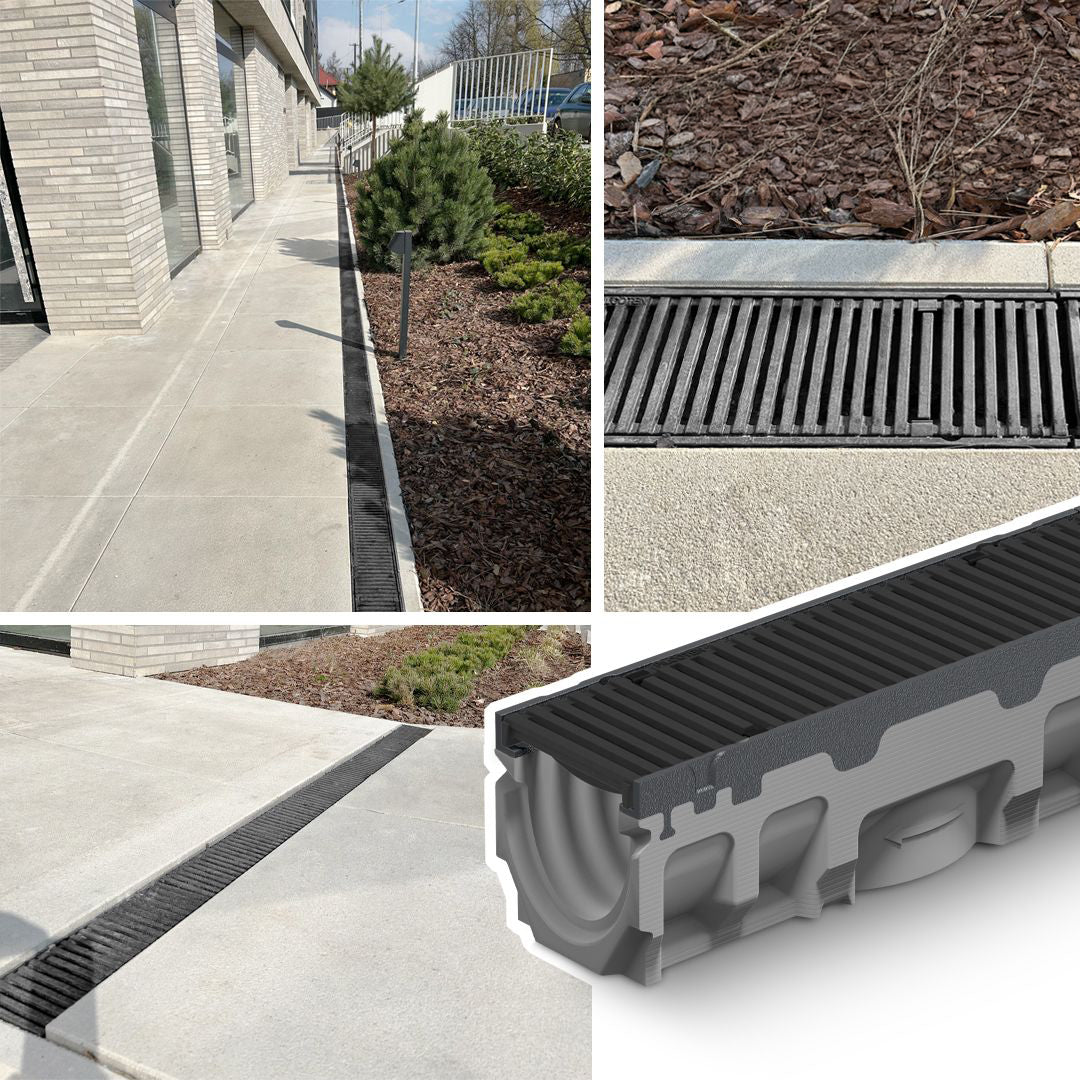

pro series · Composite

BG-FILCOTEN® pro P

Polyamide Composite Edge Rail

Lightweight, corrosion-free drainage for driveways, car parks, and landscape - up to Class D 400 with a clean, discreet profile.

Max Load Class

D 400

Max Flow

96.5 L/s

Nominal Widths

NW 100 / 150 / 200

Slope

Neutral · Pre-sloped

Load:

A 15
B 125
C 250
D 400
  • Polyamide (PA) edge — fully non-metallic, zero corrosion Ideal for coastal, chemical, and residential environments
  • Discreet, low-profile aesthetic Blends into paving, concrete, and landscape surfaces
  • Cost-effective alternative to steel and iron Budget-friendly without sacrificing Class D performance
  • fiX snap-on & 4-point bolt locking Multiple grate choices: galvanized steel, stainless, composite
  • Built-in 0.5% slope option Optimizes hydraulic flow, minimal excavation

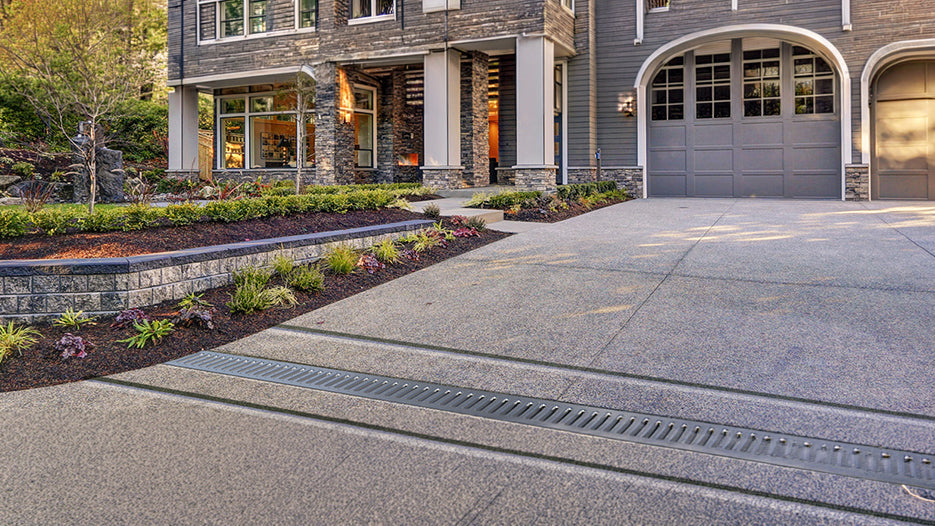

Driveways

Car Parks

Multi-level Parking

Indoor Parking

Landscape Design

Building Entrances

Sports Fields

Railway

Learn more

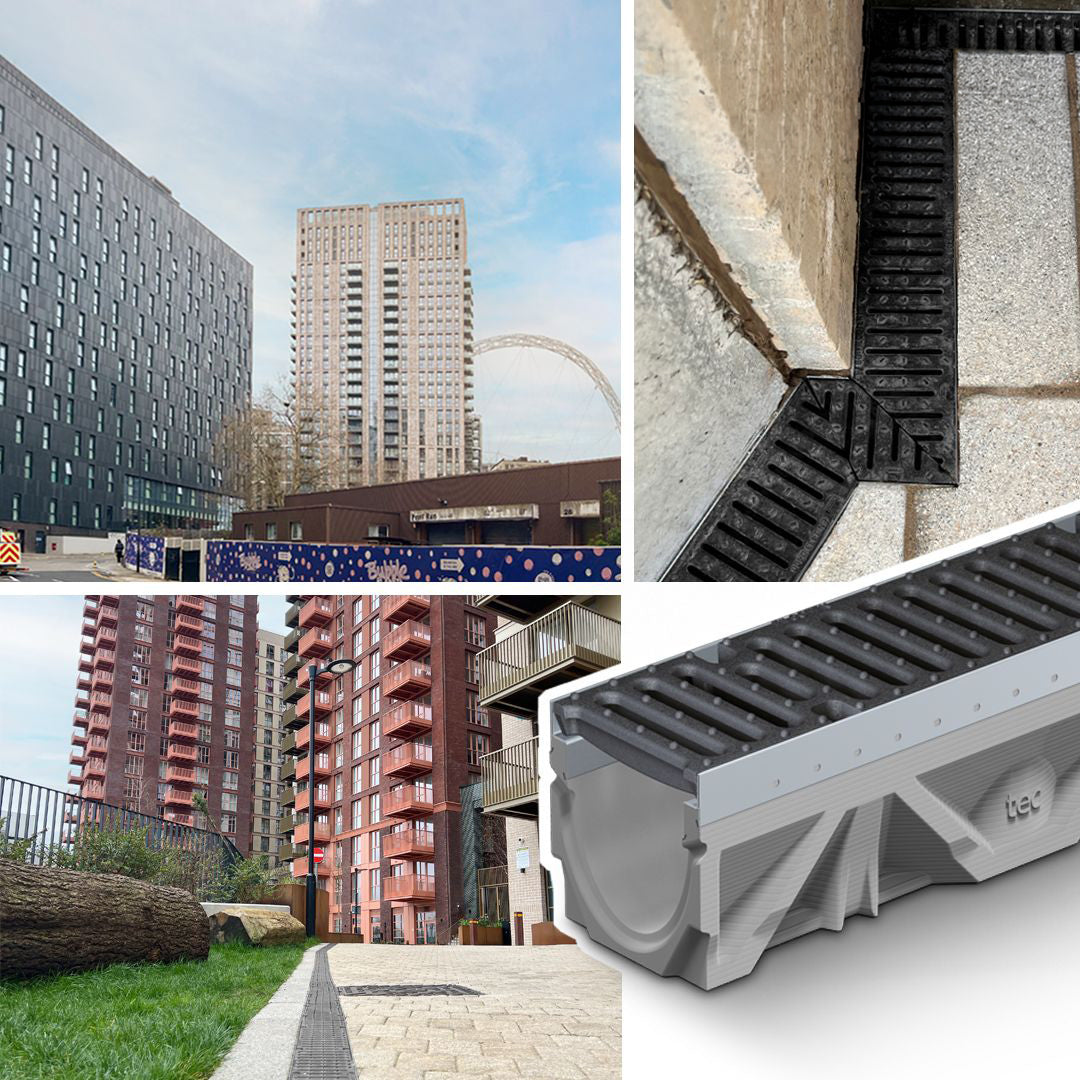

tec series · Galvanized Steel

BG-FILCOTEN® tec V

Galvanized Steel Edge Rail

The versatile go-to for roads, terraces, car parks, and airports - cost-effective galvanized edges with a broad grate range reaching Class E 600.

Max Load Class

E 600

Max Flow

21.3 L/s

Nominal Widths

NW 100 mm (4")

Slope

Neutral · Pre-sloped

Load:

A 15
B 125
C 250
D 400
E 600
  • Galvanized steel edge rails Durable corrosion protection for outdoor environments
  • Widest grate range — Class A to E Mesh, slotted, perforated, design & ductile iron grates
  • fiX 4-point snap-on boltless locking Fast grate removal and maintenance access
  • Optional anti-vandalism locking device For public and security-critical installations
  • Sloped (0.5%/unit) & neutral configurations Item nos. from 10410200 · Sump unit: 10410294 V

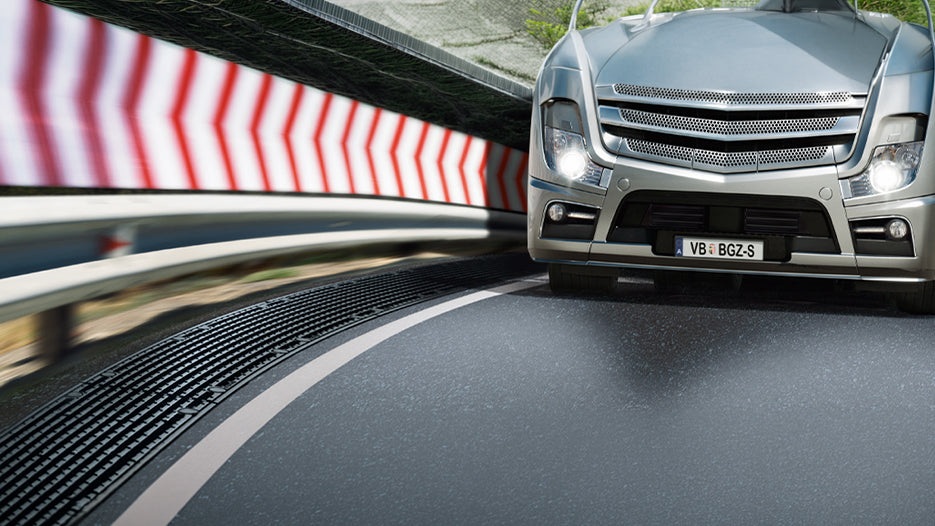

Roads

Car Parks

Railway

Airports

Terraces

Landscape Design

Sports Fields

Pedestrian Zones

Learn more

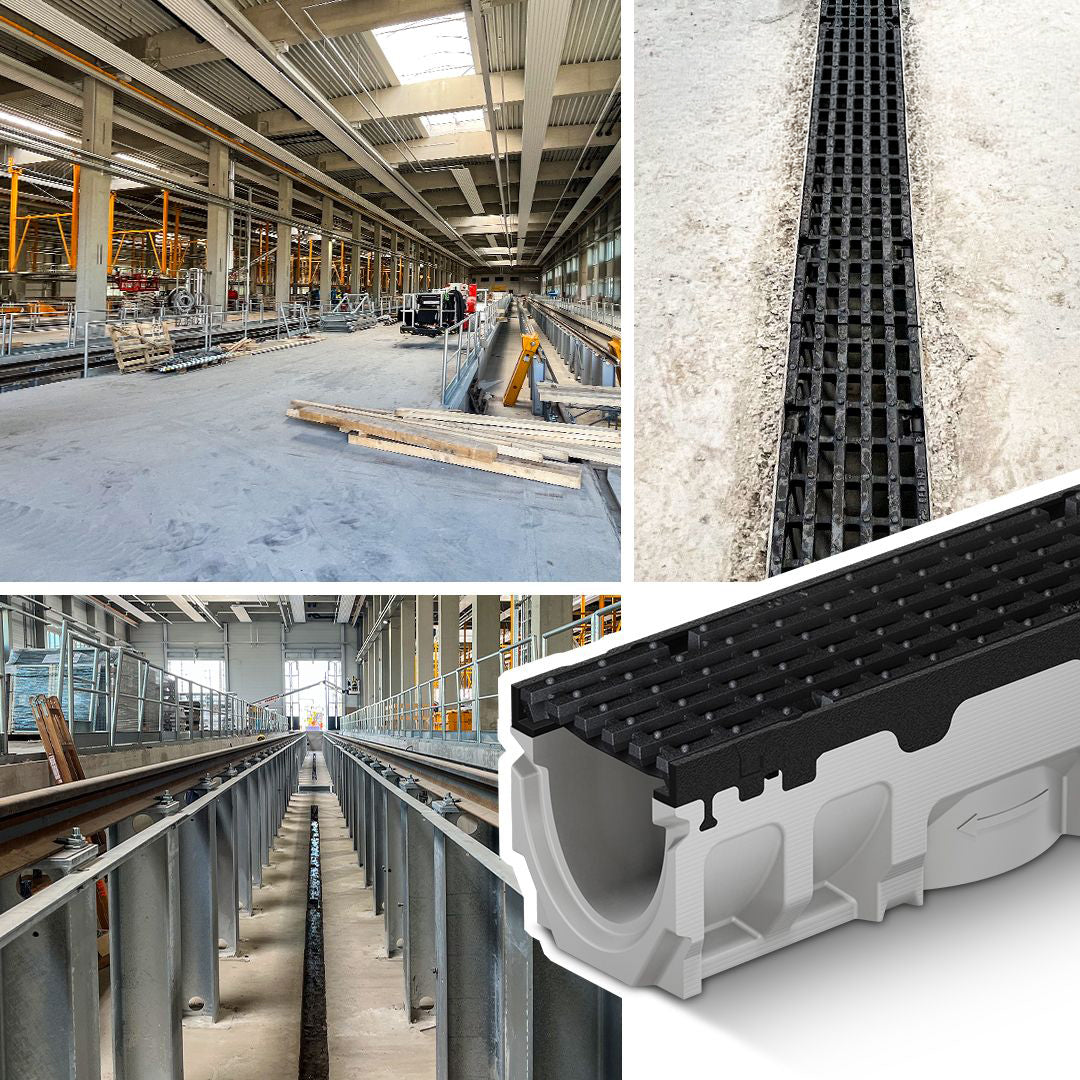

pro series · Ductile Iron

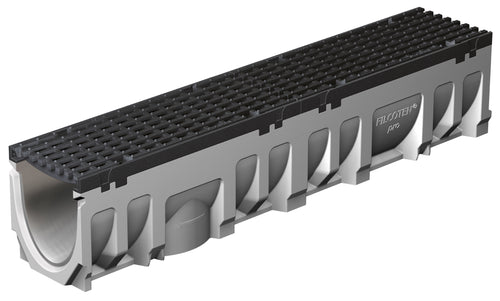

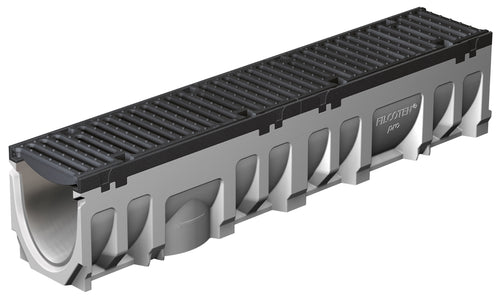

BG-FILCOTEN® pro G

Ductile Iron Edge Rail

The highest-performing system in the BG-FILCOTEN® range - ductile iron edges unlock Class F 900 for industrial roads, airports, and extreme-load environments.

Max Load Class

F 900

Max Flow

96.5 L/s

Nominal Widths

NW 100 / 150 / 200 / 300 / 400

Slope

Neutral · Pre-sloped

Load:

A 15
B 125
C 250
D 400
E 600
F 900
  • Ductile iron edge rails — strongest option Maximum impact & dynamic load resistance (F 900 kN)
  • Only BG-FILCOTEN® system to reach Class F 900 Airports, industrial vehicles, heavy-load roads
  • 5 nominal widths — NW 100 to 400 mm Widest range for high-volume drainage applications
  • 4-point bolt locking + fiX snap-on Bolted connection for safety-critical environments
  • High-capacity hydraulics — up to 96.5 L/s Sloped & large-width channels for extreme drainage demand

Industrial Roads

Logistic Centres

Airports (Airside)

Railway

Harbours

Car Parks

Race Tracks

Heavy Industry

Learn more

Need help choosing?

Spec assistance

Our product specialists will recommend the right channel based on your project drawings, hydraulic load, and traffic class.

 Get a recommendation →

Which System Is Right for You?

Choose pro P when…

Residential & light commercial

  • Class D 400 is sufficient — driveways, car parks, entrances
  • Corrosion-free rail with zero maintenance is a priority
  • Discreet aesthetic — edge must blend with paving
  • Budget is a key constraint
  • Coastal or chemical exposure (no metal to corrode)

Choose tec V when…

Roads, car parks & public infrastructure

  • Class E 600 needed — roads, car parks, terraces, airports landside
  • Compact NW 100 footprint desired — low excavation
  • Wide grate selection matters (Class A–E, multiple materials)
  • Built-in slope is needed for longer drainage runs
  • Cost-effective galvanized protection is sufficient

Choose pro G when…

Heavy industry, airports & F 900 sites

  • Class F 900 required — the only BG-FILCOTEN® system that achieves it
  • Extreme dynamic loads — industrial vehicles, aircraft, race tracks
  • Wider channels needed — NW 100 to 400 mm
  • Maximum flow capacity required (up to 96.5 L/s)
  • 4-point bolt-down grates are specified for safety

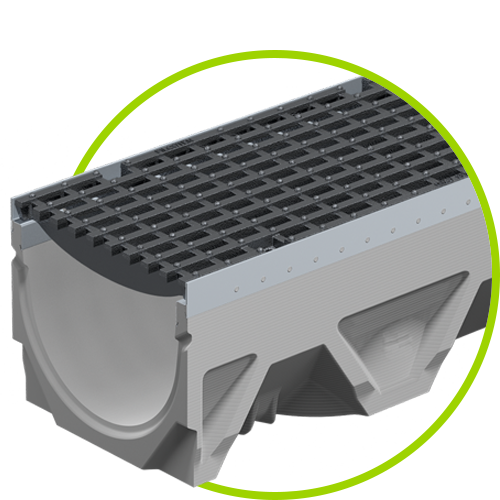

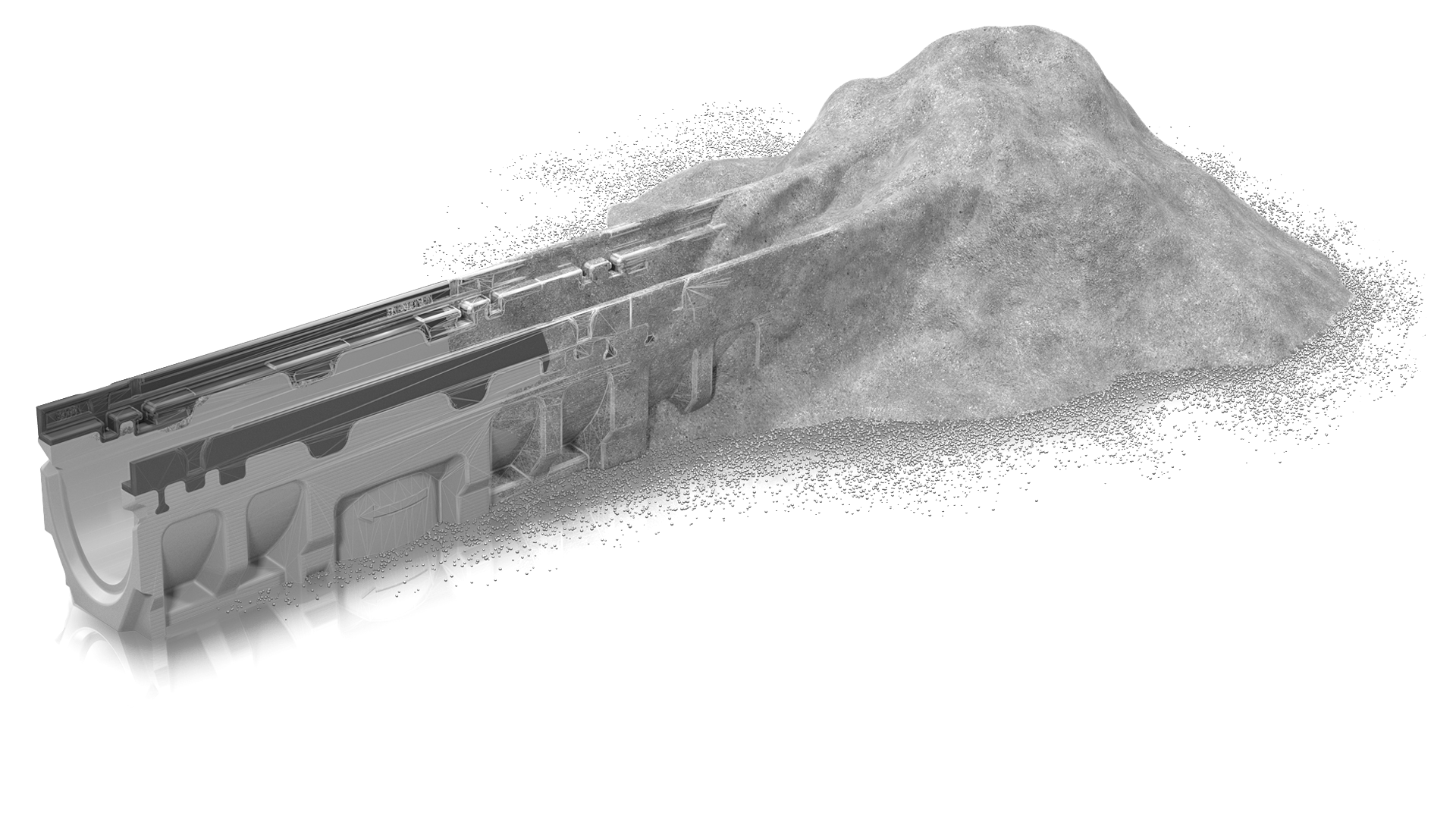

What is FILCOTEN® HPC?

High Performance Concrete.

Technology in harmony with nature

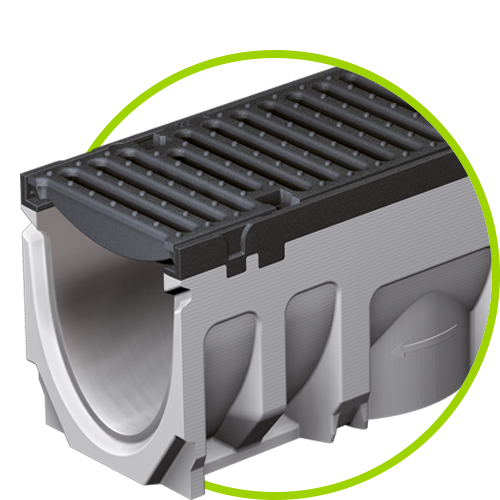

BG-FILCOTEN® HPC (High Performance Concrete) is a high-density micro-structure concrete material which allows the construction of drainage channels in a lightweight design with the same stability and load class as conventional concrete systems.

BG-FILCOTEN® HPC is unique when it comes to environmental friendliness thanks to the sparing use of raw materials and due to the fact that it is tested for hazardous materials⁴⁾ guaranteed as harmless in terms of the biological standards of construction, as IBR certified³⁾, 100% recyclable²⁾

BG-FILCOTEN® is still unrivaled in the market place, being admired for its sustainability and its unique channel strength. FILCOTEN® complies with the EN 1433 standard and the ASTM A1 12.6.8.2001 floor and trench drain standard.

The high impact resistance and stability of FILCOTEN® ensures easy, quicker installation, and greater safety when installing the channels.

Key benefits/ features:

  • High-performance mineral concrete (dense, low-capillary, optimized structure)
  • High strength and frost resistant
  • Fire protection class A1
  • Expansion coefficient identical to concrete
  • UV resistant
  • Compressive strength far exceeding the requirements of EN 1433
  • Low water absorption and penetration
  • 100% recyclable – quality class U-A²⁾
  • IBR certified³⁾, free from: VOCs, styrol⁴⁾ and biozides, heavy metals, radioactivity.

High Compressive Strength

A high quality cement mixed with a great proportion of fibers enables thin-walled channel design while yielding a very high compression strength. BG-FILCOTEN® channels are therefore lighter yet easily out perform most competitors.

70% Lighter

FILCOTEN® channels are up to 70 % lighter than conventional concrete channels. This is a huge savings in terms of fuel consumption. BG-FILCOTEN® is committed to conserving resources and decreasing its -40°F (-40°C) proportional CO2 emissions. The lower weight also facilitates on site installation.

Non-flammable

While plastics/ polyester resin are both flammable and often emit hazardous fumes when ignited, the complete absence of these resins, catalysts and bonding agents make BG-FILCOTEN® completely non-flammable. BG-FILCOTEN® has a Fire Rating of A1.

0% VOCs

100% recyclable, BG-FILCOTEN® is free from artificial resins and solvents. This means that it is harmless to the environment, our employees and the installation team.

BG-FILCOTEN® channel bodies have been bioconstructively tested and are recommended by the IBR (Institut für Baubiologie Rosenheim GmbH)

No harmful substance, heavy metals or VOC's.

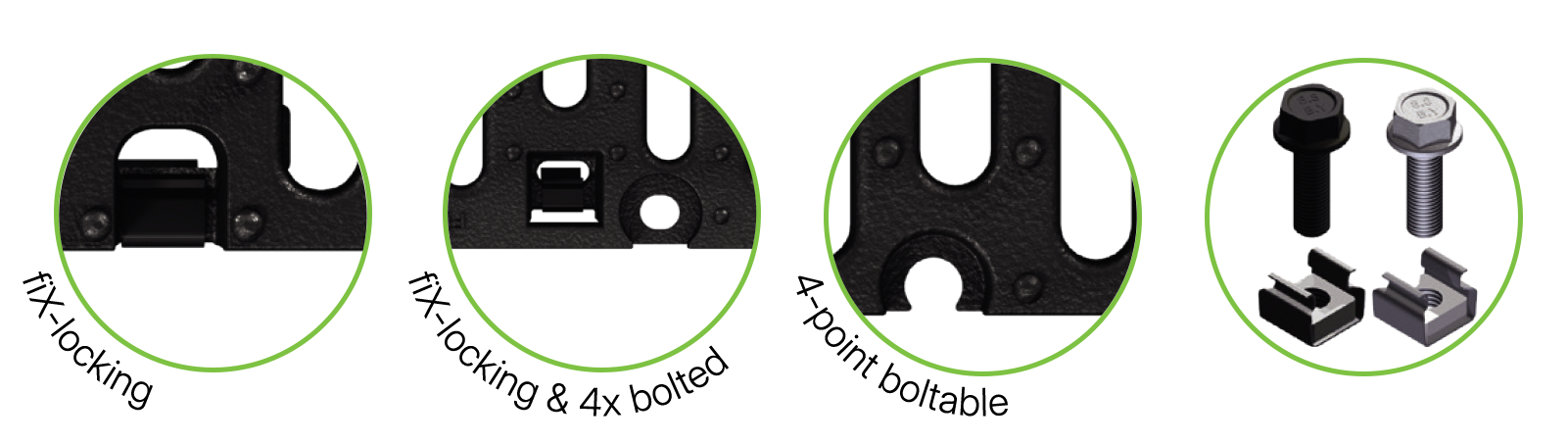

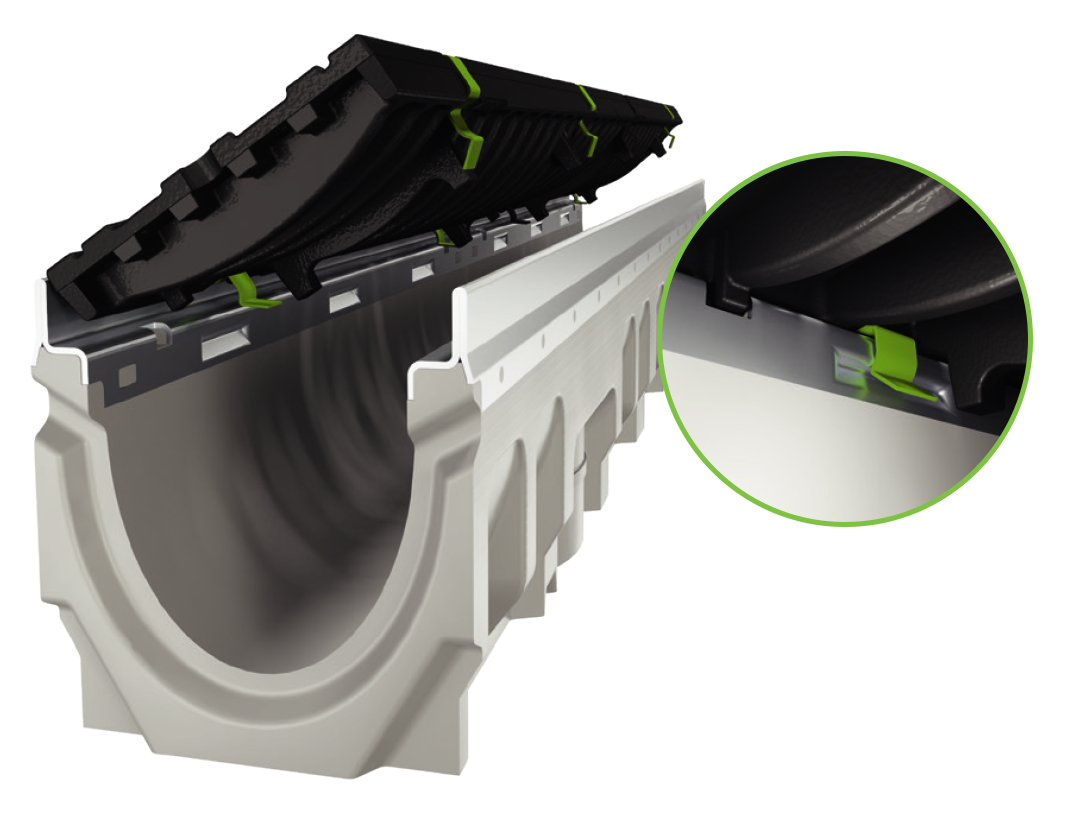

Lock Mechanisms

Grate Locking Mechanisms & Compliance Features
  • 4-point snap-on (fiX) – For locking to the edge rails and absorb noise. Easy maintenance.
  • 4-point bolts – For heavier application that need a totally secure locking system. For a better system longevity,
    our nut cages can be replaced.

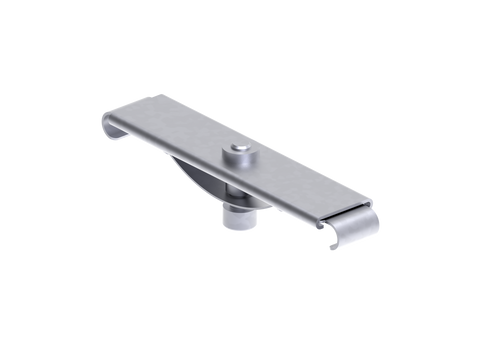

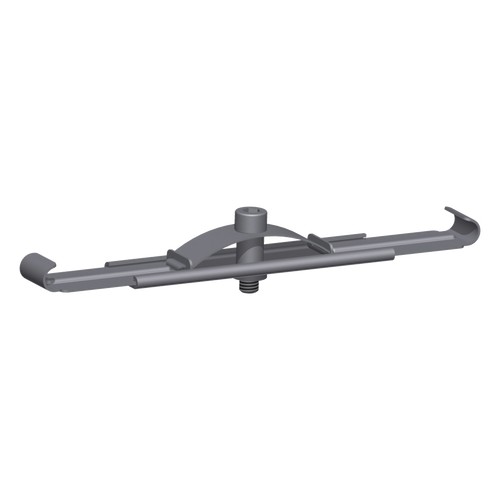

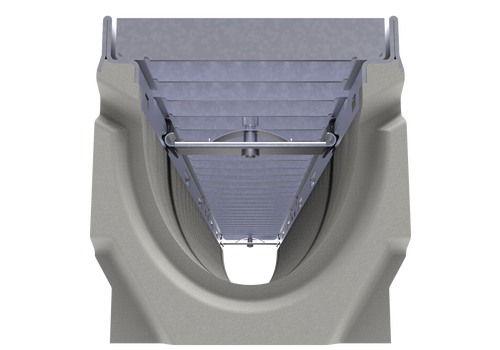

  • Anti-vandalism device – To secure the grates to the trench drain bodies.

Health & Safety Compliance:

Heelproof – We offer grates with less than 5/16 inch (8mm) openings to protect the pedestrians.

ADA compliant – Some of our grates are wheelchair compliant for a totally safe

Bicycle compliant – Most of our grates have openings allowing their crossing with a bicycle.

Light traffic rated – All our grates are crossable with a car.

Theft protection – Anti-vandalism locking system for our grate selection.

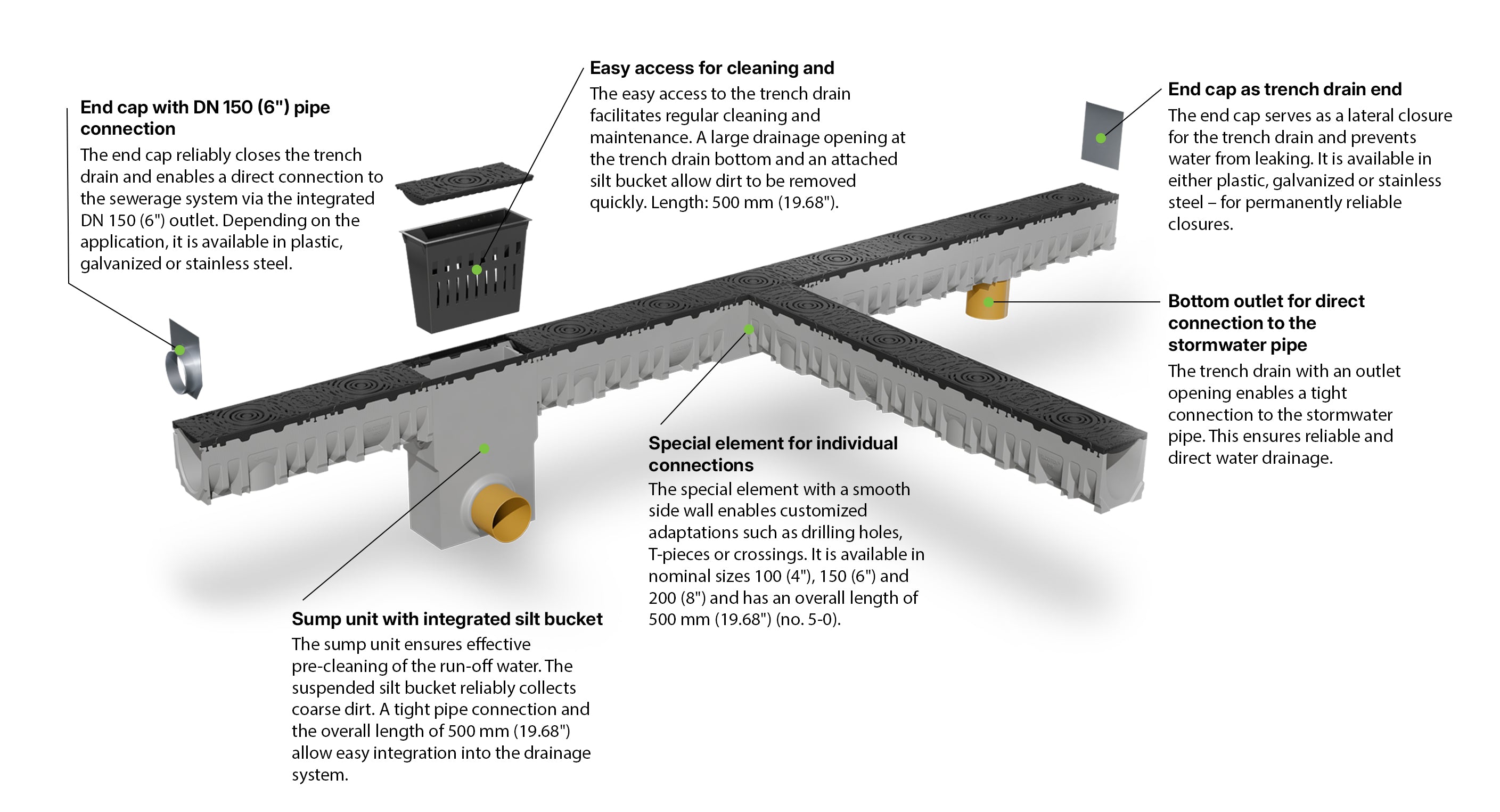

Complete system available with BG-Filcoten

the top choice ‌for professionals.

Built to Outperform

Minimal Weight

  • Enables lightweight construction
  • Quick and easy to install
  • Dimensionally stable, robust concrete elements

Perfect Bonding in Concrete Bedding

  • Ideal expansion coefficient
  • Identical to that of surrounding concrete

High Drainage Performance

  • Low water absorption and penetration
  • Smooth channel surface for optimal drainage
  • Superior self-cleaning effect

Extreme Temperature Resistance

  • Maximum resistance to frost and de-icing salt
  • UV resistant material

Fireproof

  • Non-combustible building material — Class A1
  • Emits no toxic smoke

Maximum Robustness

  • Unsurpassed stability and durability
  • High pressure resistance clearly exceeding EN 1433 requirements

Green by Design

Sustainable
from the
Ground Up

BG-FILCOTEN® HPC is manufactured using 100% green energy with 17.56% sourced from an in-house photovoltaic plant. Zero fossil fuels. Verified by life cycle assessment in accordance with ISO 14040/14044 and EN 15804:A2.

100% Recyclable

Certified quality class U-A — fully recoverable at end of life with no hazardous residue.

Clean Energy Manufacturing

Made using 100% green energy. 17.56% generated by in-house photovoltaic plant. No fossil fuels whatsoever.

Styrene-Free Formula

No synthetic resins or fibres. Certified biologically sound construction material by IBR.

70%

Less sand
& gravel

55%

Less cement
used

51%

Less water
consumed

100%

Green energy
manufacturing

17.56%

Energy from in-house photovoltaic plant - reducing grid dependency and carbon footprint at the source.

Verified & Certified

Tested. Trusted.
Certified.

ISO 14001 / 50001

Certified environmental and energy management at the Oberwang/AT facility

IBR Biologically Sound

Certified environmental and energy management at the Oberwang/AT facility

KIWA BRL 5070

Certified acc. to KIWA certificate no. NL BSB® K43940

LCA Verified

Enhanced ecological transparency per ISO 14040/14044 and EN 15804:A2. Ideal for sustainable construction

Where it's used

Built for the hardest jobs in Canadian infrastructure

BG-FILCOTEN® channels handle the freeze-thaw cycles, salt, and traffic loads that destroy lesser drainage systems. Specified across five major project types.

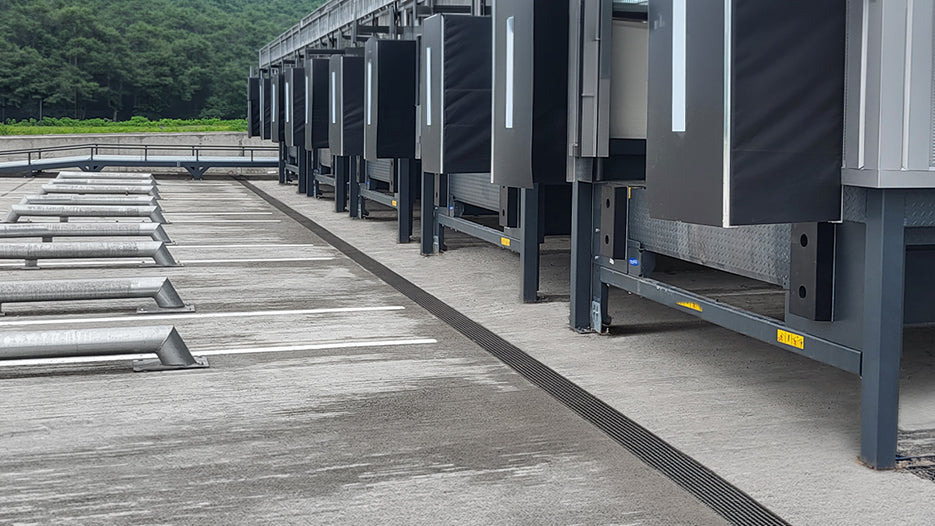

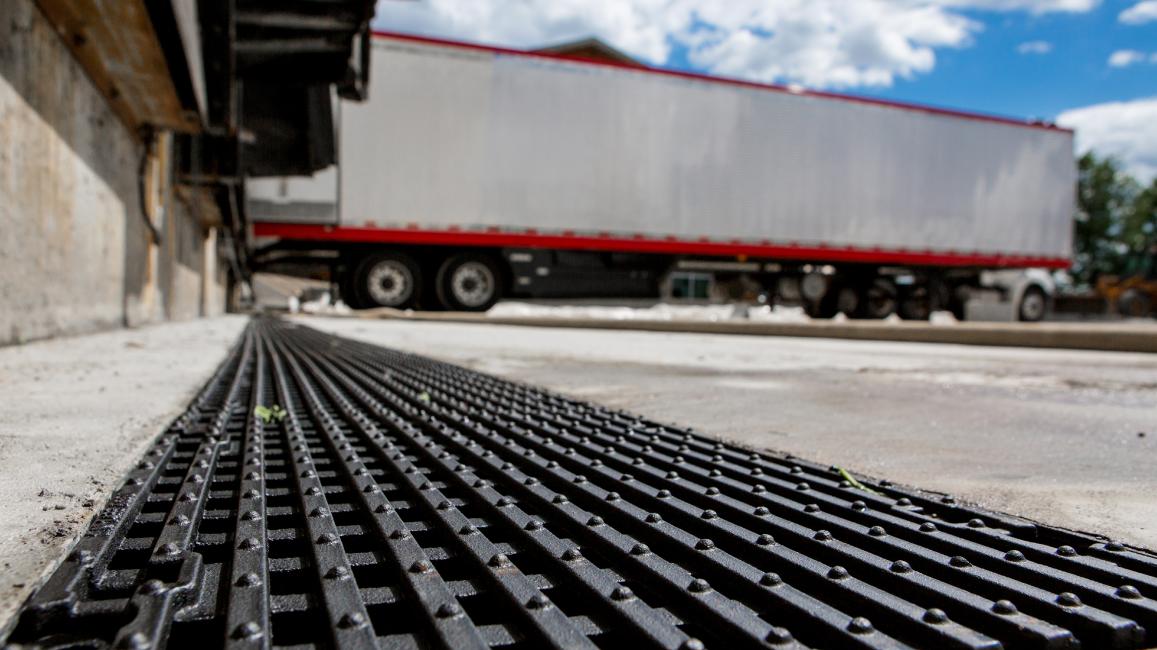

Logistics & Warehousing

Class E–F load ratings for forklift traffic and heavy trailer turning radii.

Highways & Bridges

MTO-approved hydraulics with chemical and freeze-thaw resistance.

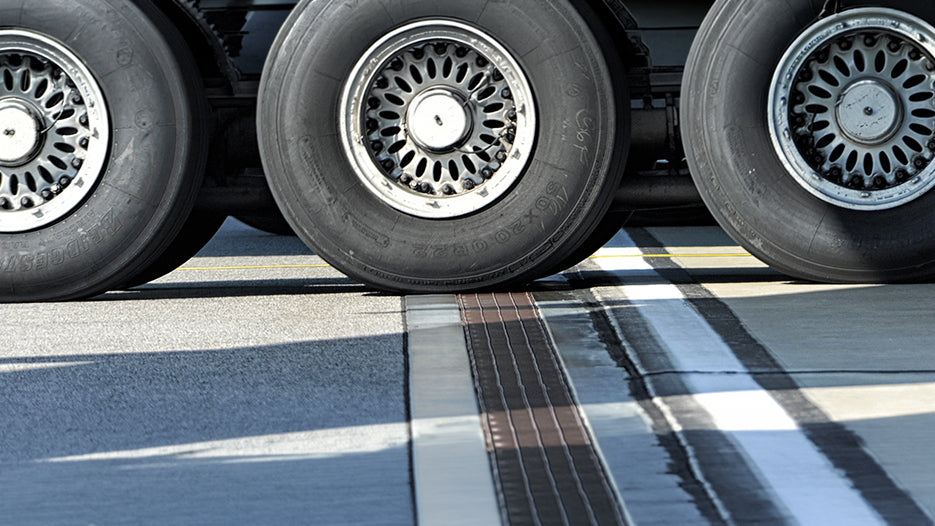

Airports & Ports

Class F monolithic bodies engineered for aircraft and crane loads.

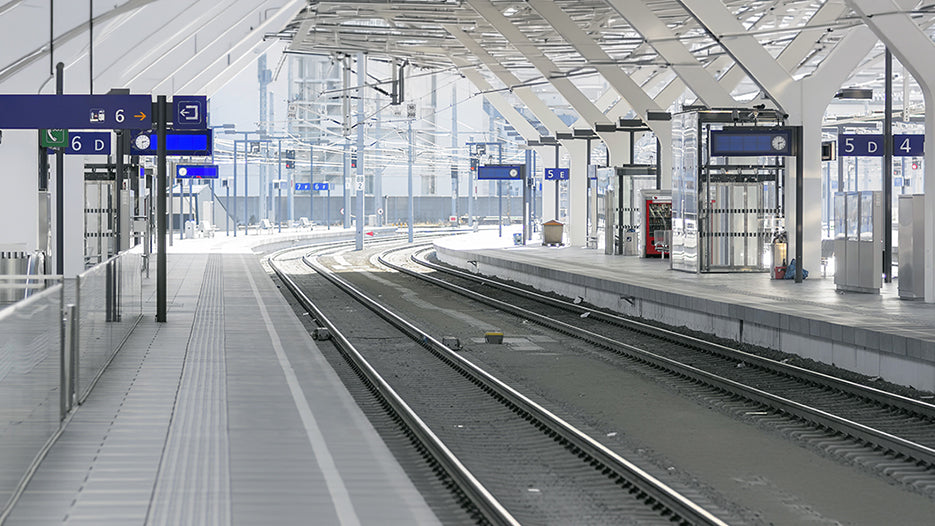

Public & Pedestrian

ADA-compliant heel-proof grates with decorative iron finishes.

Commercial & Residential

Driveway, pool deck, and parkade systems with stainless slot-top finish.

Ready to Build Better?

Discover how BG-FILCOTEN® HPC can elevate your next drainage or construction project.

Request Technical Data Shop now

Get started

Send us your project needs - we'll send back our solution in 48 hours.

No obligation. We'll review your project requirements: hydraulic loads, traffic class, and outlet positions, and recommend the most effective BG-FILCOTEN® system for your project.

+1 (778) 680 4330

Mon–Fri 8am–5pm PT

info@rci-ltd.com

Quote turnaround: 48 hrs

Why RCI

More than a solutions provider

your partner in drainage success.

Raincycle Infrastructure (RCI) is committed to helping build resilient drainage infrastructure across Canada with proven solutions that meet the challenges of today-and the demands of tomorrow.

By combining world-class technology with
with responsive local support, we help reduce field surprises, keep projects moving, and deliver drainage systems that perform reliably for decades.

Authorized Manufacturer's representative

Direct factory pricing, full warranty, and access to the complete European catalog - including specialty SKUs.

Design/ Quote in 48 hours

Send us your drawings; we'll return a complete design package with channel runs, fall, and outlet locations within two business days.

In Stock: BC | AB | QC

Our trench drain systems are in stock across BC, AB & QC.
Reach out and we'll ship directly or help you find nearest stocking location. No long lead
times.

On-site delivery & support

Dedicated support from quote to install. We coordinate freight, staging, and replacement parts.
